VS Code Extension Plugin（Zepp OS Dev Tools）

Introduction​

Zepp OS Dev Tools is an extension to the popular Visual Studio Code editor, currently implementing the npm package @zeppos/zeus-cli (CLI for short) commands for visual interaction, and will support more new features in the future, so stay tuned.

Prerequisites​

  • Requires Visual Studio Code version 1.67.0 and above

Plugin Installation​

Search for Zepp OS Dev Tools in the VS Code Plugin Marketplace, then click Install.

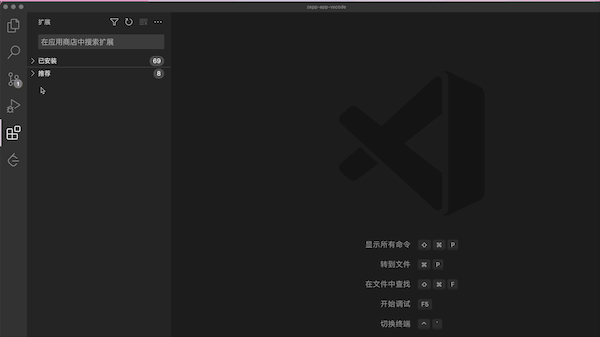

zeppos-dev-tools

Plugin Configuration​

Configure 1(Version 0.1.0 is not supported)​

Run mode Terminal-based, or GUI-based:

  • terminal: Command interaction is based on the terminal command line
  • GUI: Command interaction is based on the GUI

The default value is GUI

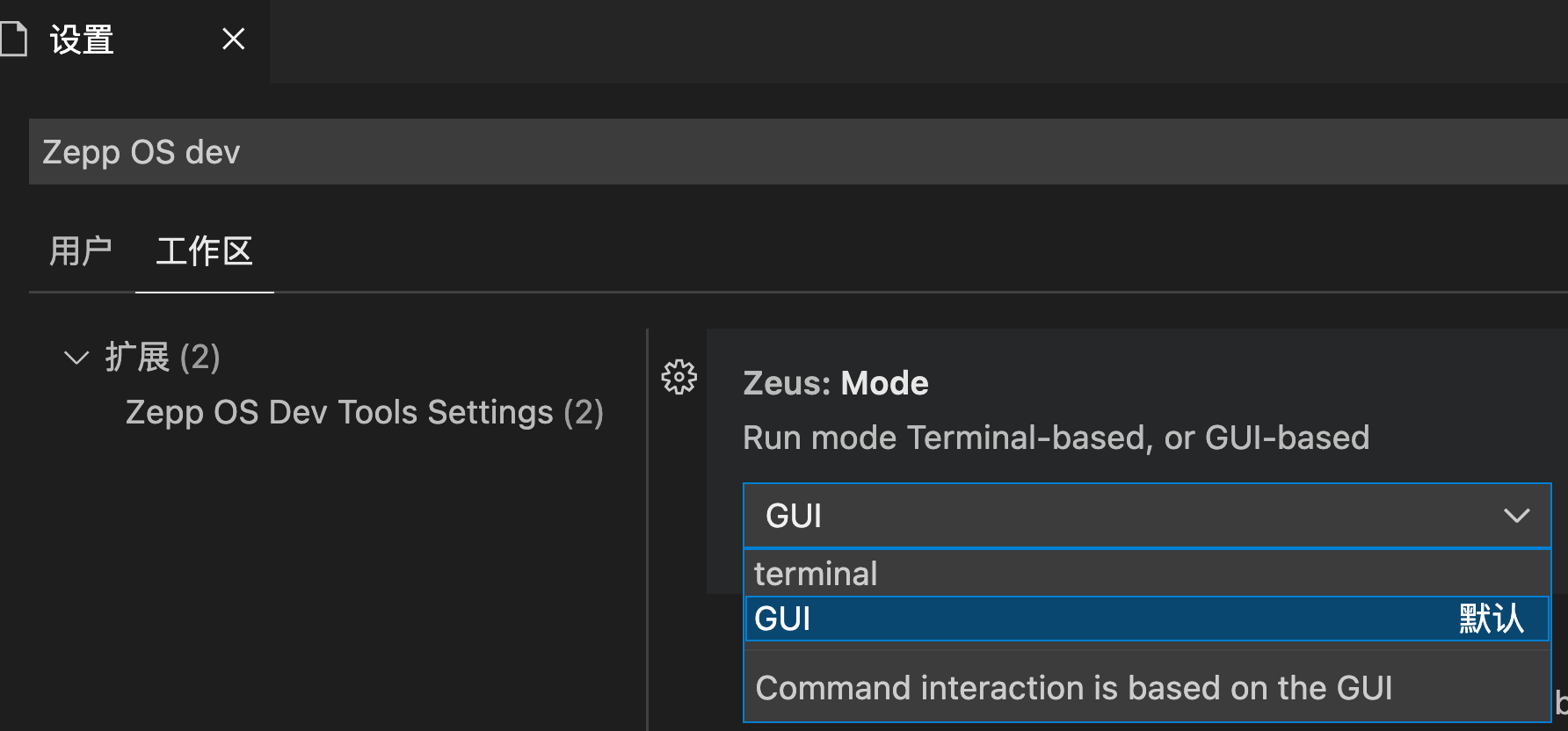

mode

Configure 2​

The shortcut displayed in the status bar at the bottom:

  • dev: The zeus dev command corresponding to the CLI
  • preview: The zeus preview command corresponding to the CLI
  • bridge: The zeus bridge command corresponding to the CLI
  • build: The zeus build command corresponding to the CLI
  • rocket: Full Feature List

The default value is []

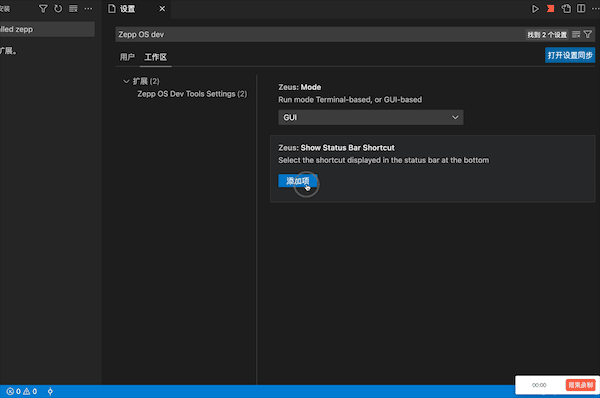

set-statusbar

Plugin Usage​

Mode 1​

Add zepp-os-explorer view for USER, STATUS, BUILD related information display and provide shortcut function buttons.

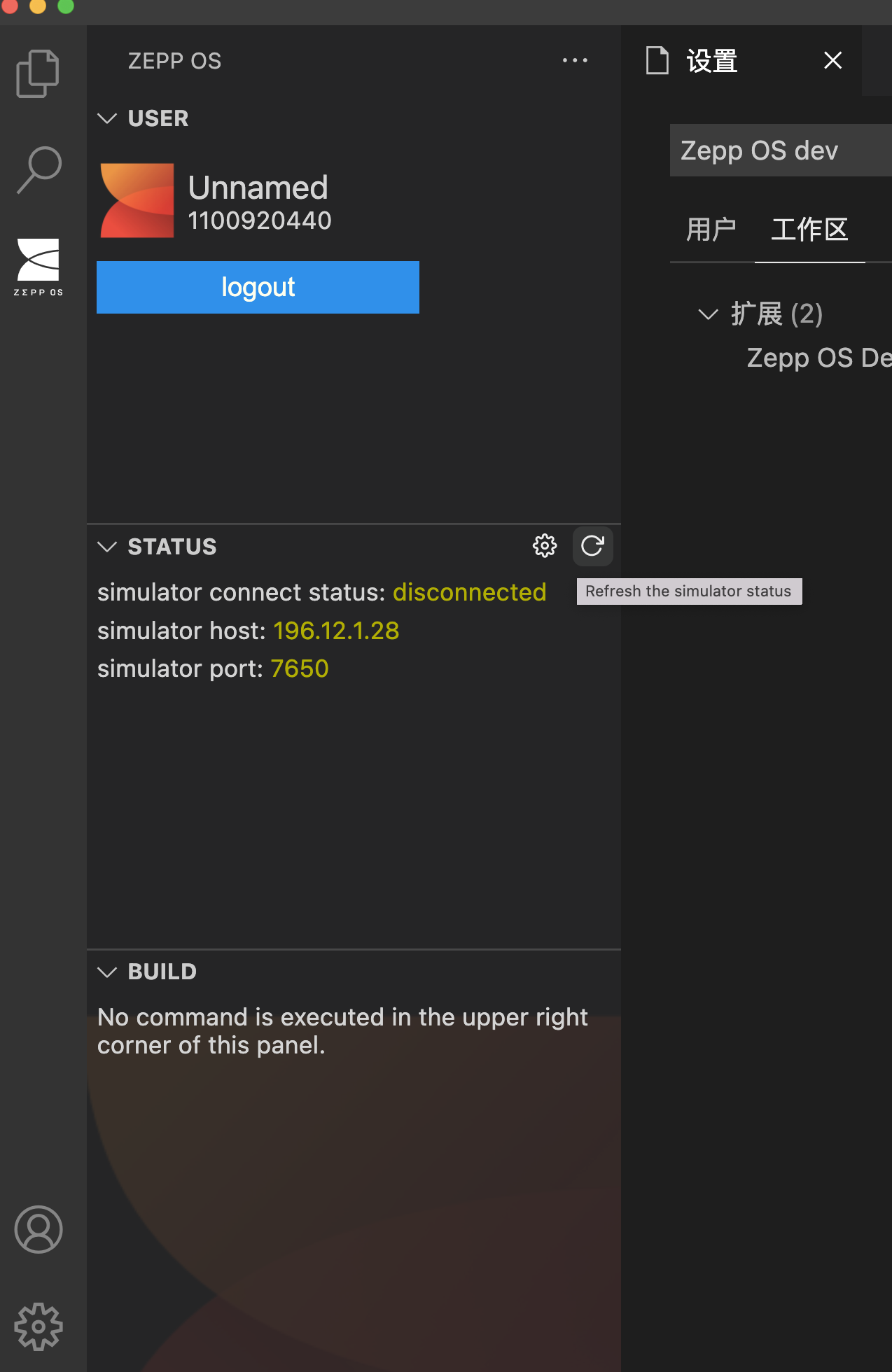

zepp-os-explorer

Mode 2​

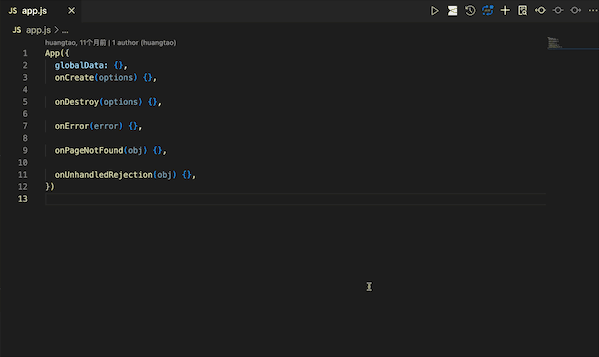

In any interface of VS Code, use the shortcut command Command + P or Ctrl + P to bring up the window and type >zeus, then all supported commands will appear, click on the one you need to proceed. command+p

Mode 3​

On the editor page, open any file and you can see a little ZEPP OS icon in the title status bar in the upper right corner, click it to summon a pop-up list of all commands.

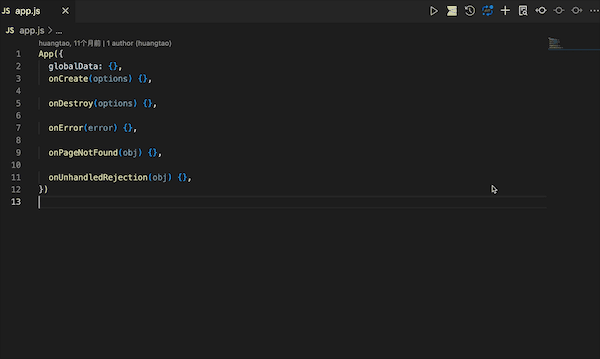

right-corner-zepp-os

Mode 4​

After activating the plug-in (i.e., having executed Mode 1 or 2 or 3 once, and the Plugin Configure 2 is effectively set), the common commands of the CLI will appear in the status bar at the bottom of VS Code, making subsequent development faster.

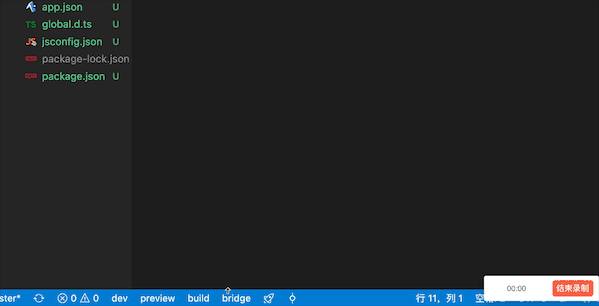

statusbar

Support commands​

  • zeus.commands Full Feature List
  • zeus.docs View Documents
  • zeus.check.install Check if the @zeppos/zeus-cli dependency is installed globally
  • zeus.create The zeus create command corresponding to the CLI
  • zeus.init The zeus init command corresponding to the CLI
  • zeus.login The zeus login command corresponding to the CLI
  • zeus.logout The zeus logout command corresponding to the CLI
  • zeus.status The zeus status command corresponding to the CLI
  • zeus.config The zeus config command corresponding to the CLI
  • zeus.dev The zeus dev command corresponding to the CLI
  • zeus.build The zeus build command corresponding to the CLI
  • zeus.preview The zeus preview command corresponding to the CLI
  • zeus.bridge The zeus bridge command corresponding to the CLI
  • zeus.simulator Shortcut command for zeus config to set simulator

If you are not familiar with the CLI and its commands, you can check out the CLI documentation
